DROPLA UGV LOGIST 1.0

Variability

Versatile Modular System for Critical Missions DROPLA LOGIC 1.0’s modular design allows it to be equipped with a variety of payloads to suit specific tasks, such as:

Vegetation Clearance Transportation Sensor deployment

Mowing and vegetation clearing

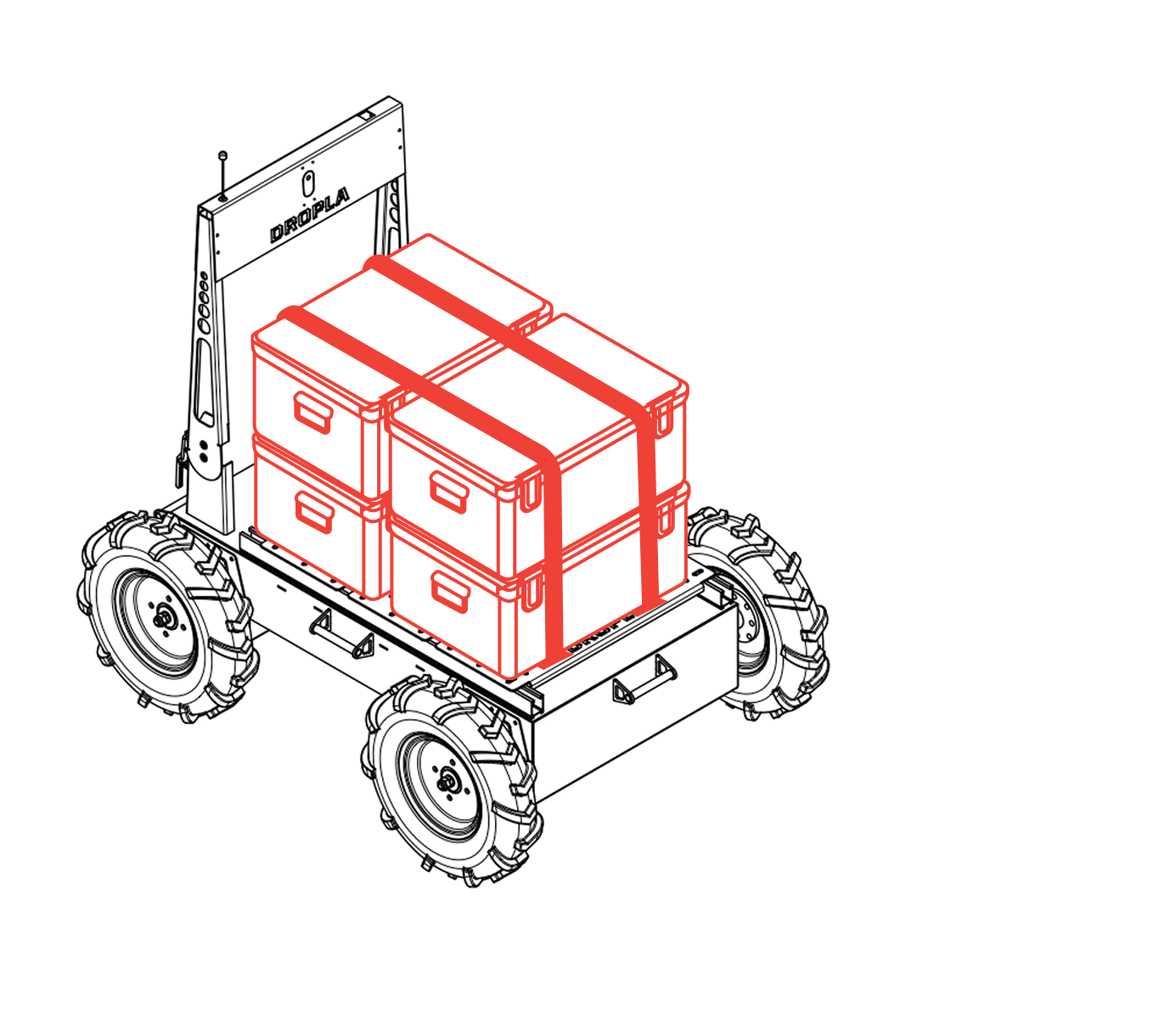

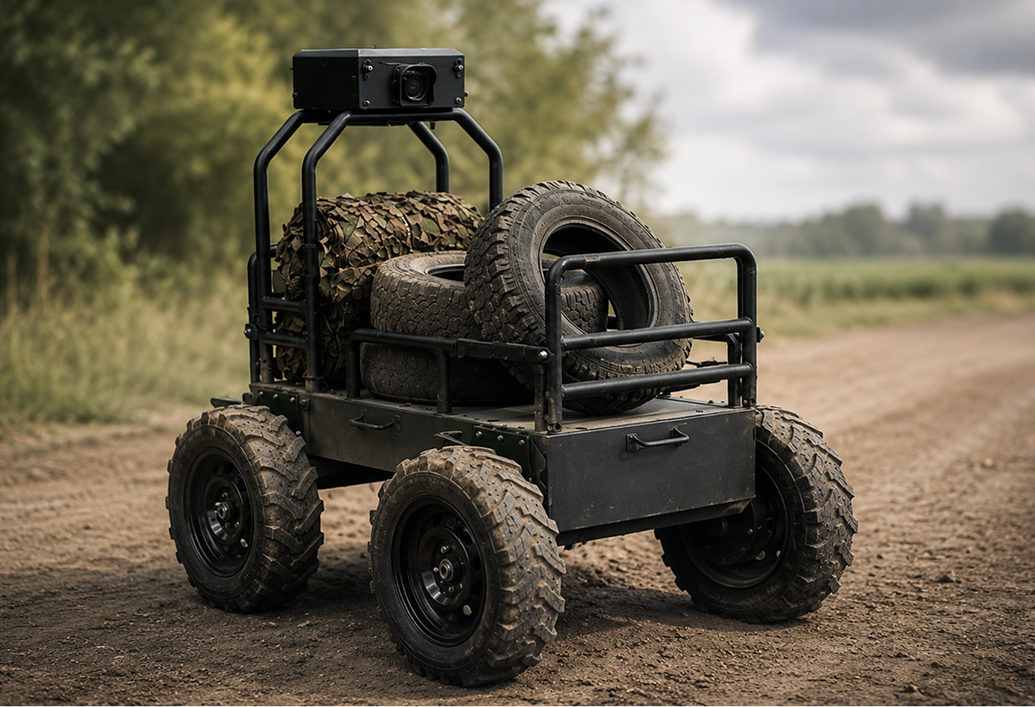

Logistics transport for equipment and supplies

Casualty evacuation from hazardous zones

Mine detection and explosive ordnance disposal

AI-based surveillance and sensor fusion with optical/thermal/multispectral modules

Radio-electronic warfare (REW) resistance for operation under jamming and hostile environments.

Vegetation Clearance Transportation Military Equipment

Technical characteristics

Tactical Advantage at Lower Cost

To transform demining, Dropla puts cutting-edge products before conventional process, and builds capabilities to eliminate waste in demining action.

Slopes

Range

Payload

Dimensions UGV

1500×1100×1510 mm

Weight (full load)

250 kg

Ground clearance

150 mm

Chassis type

Wheeled (4×4, independent drive on eachwheel)

Drive

4 electric motors, 1 kW each

Maximum speed

30 km/h (roads), 20 km/h (off-road)

Range per charge

Up to 80 km on roads, up to 25 km off-road

Power unit type

Electric, battery-powered

Battery

CATL 180Ah; 3.7–4.2 V; 10 pcs.

Total battery capacity

6.6–7.5 kWh

Charging time

7 hours

Control

Remote (manual mode), optional –
automatic/semi-automatic modes

Navigation system

Optional (GPS, GLONASS, GALILEO, BEIDOU)

Control channel

ELRS 950 MHz or 2400 MHz

Video transmission channel

5.8 GHz

Opto-electronic equipment

Day camera (modular), night camera (optional)

Communication range

Up to 3 km (open area), up to 1.5 km (rough terrain)

Maximum climb angle

35°

Maximum tilt angle

45°

Trench width (ditch crossing)

0.25 m

Vertical obstacle height

250 mm

Maximum wading depth

0.3 m

Noise level

30–50 dB (in motion)

Operating range

Temperature from -10°C to +40°C, humidity up to 95%

Warranty period

1 year

Crew required

1 operator

Mean Time Between Failures (MTBF)

Up to 100 hours

Total lifespan

not less than 1000 operating hours

Package contents

DROPLA PLATFORM, Remote control, Video monitor, Charging device, ZIP kit

Dimensions UGV

1500×1100×1510 mm

Weight (full load)

250 kg

Base platform type

Fully-welded, self-supporting steel body

Chassis type

Wheeled (4×4, independent drive on eachwheel)

Power unit type

Electric, battery-powered

Ground clearance

150 mm

Max incline angle

40°

Max tilt angle

40°

Max trench width

0.25 m

Vertical obstacle height

0.25 m

Max fording depth (with hard bottom)

0.3 m

Chassis camera horizontal field
of view

125°

Chassis camera vertical field
of view

100°

Warranty period

1 year

Noise level at average speed

40 dB

Mean Time Between Failures (MTBF)

Up to 100 hours

Total lifespan

Trailer, pickup truck bed

Crew required

1 operator

Warranty period

1 year

Cargo handling system

Integrated cargo securing points

Power supply

Voltage range from 40 V to 57.5 V

Battery

CATL 180Ah; 3.7–4.2 V; 10 pcs.

Operating conditions:
- Temperature
- Pressure
- Precipitation
- Wind speed

From –10° to +40°
800–1000 mmHg
Fog, light rain
Up to 30 m/s

High-Mobility Autonomous Ground Vehicle
for Tactical & Logistics Operations
